MaXfan Compac

  • 315 630 mm diameter
  • Volumes up to 4.9m/s
  • Static Pressures up to 900 Pa (Non-stalling characteristic)
  • Fans tested to ISO5801 and BS848
  • High efficiency energy saving IE2 motor
  • Low breakout noise levels
  • Motor protection and terminal block IP55 (DW172 & Defra Compliant)
  • Ambient temperatures up to 80°C (Dependent on size)
  • Overheat protection as standard
  • Compact robust light weight construction
  • Galvanised casing for high corrosion resistance
  • Full inverter control and flexibility

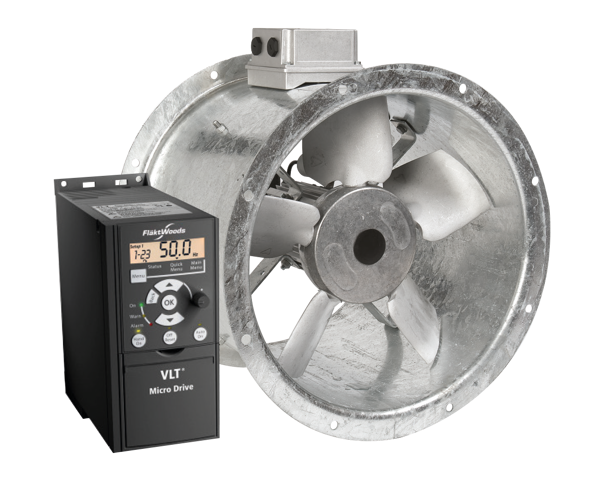

The Woods MaXfan Compac is designed for kitchen canopy systems, offering high performance and pressure with full inverter control.
  • High performance & pressure – Single motor & impeller
  • Full 1Ph inverter control – Programmed with simply installation
  • Compact robust design - DW172 compliant


The MaXfan Compac reinforces the high-quality products that Woods has provided over the years. The MaXfan Compac fan has been specifically designed for kitchen canopy systems offering you; High Performance, Full Inverter Control, Easy Installation & Minimised maintenance with the single motor & impeller solution, Comparable noise levels, Compact robust lightweight design, DW172 Compliance and is available in stock for next day delivery in the UK.


Fan Selector


A list of relevant literature, operation and installation manuals for this product.
