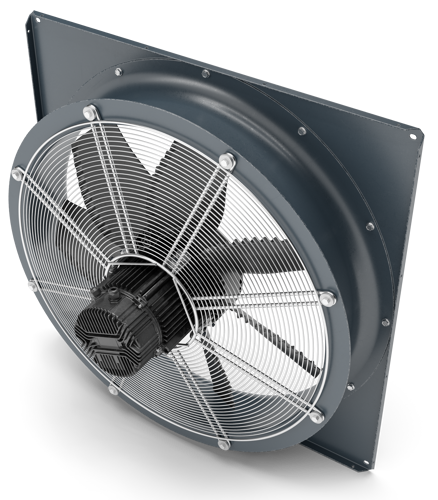

BoudECa EC Plate Fan

  • EC Industrial Axial Fan
  • Volume flow rate up to 30,060 m³/h
  • Static pressure exceeding 230 Pa
  • High-efficiency IE4+ EC motor technology
  • Infinitely variable 0-10 V speed control (fan starts from 1.6 V)
  • Operating ambient temperature range: -25°C to +55°C
  • Independently tested IP55 motor rating with cast aluminium housing
  • Aerodynamically optimised impeller with crenellated blades and sound-reducing wing tips
  • Fully EMC compliant and CE marked
  • Robust corrosion-resistant guards meeting BS 848-5 and ISO 12499 standards
  • Standard and bespoke plate sizes and finishes available
  • Smarter efficiency. Greater flexibility. Built for the toughest environments.

Our BoudECa EC Industrial Axial Fan range delivers a new standard in performance, control, and energy efficiency. Designed with advanced EC motor technology, the range achieves IE4+ efficiency – cutting energy use by up to 32% compared to traditional AC fans.

Available in sizes from 710 to 900 mm, the range delivers airflow rates up to 30,060 m³/h and pressures above 230 Pa while keeping noise and running costs to a minimum. The low-profile motor design reduces aerodynamic losses, while its internal rotor system enhances thermal efficiency, motor longevity, and rapid acceleration/deceleration.

Engineered for real-world conditions, the BoudECa EC Industrial range has been tested in fully representative installed setups – so every performance figure reflects what you can expect in practice. From cooling towers, adiabatic systems, and heat exchangers to cold rooms, agriculture, and industrial process environments, these fans adapt effortlessly to diverse applications.

Manufactured with pre-galvanised steel casings, UV-stabilised polymer impellers, and protective sealing against dust and water ingress, the EC Industrial range is designed for durability and long service life. With flexible mounting options, safety features as standard, and Woods’ century-long heritage in air movement innovation, this fan range is the smart, future-proof choice for reliable industrial ventilation.

Product Selection

Documents

  • BoudECa Industrial Axial Fan O&M Manual
  • BoudECa Industrial Axial Fan Catalogue
