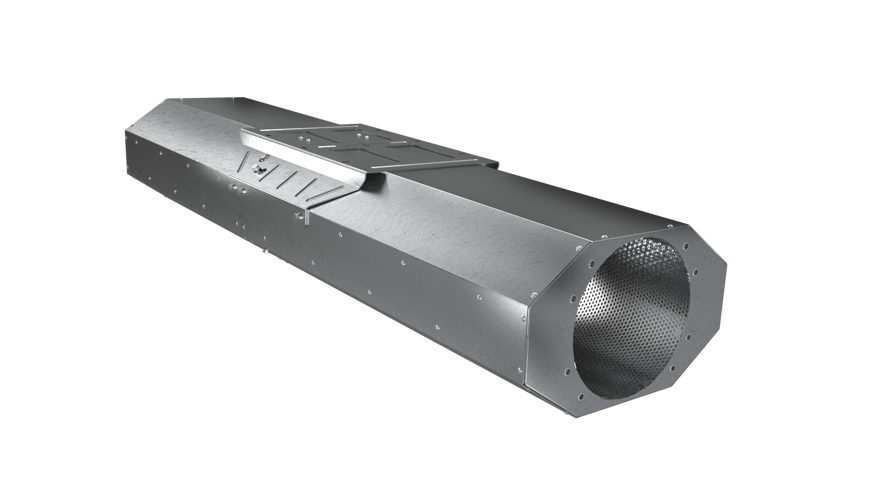

JTv Low Profile Jet Thrust Fan
- Low profile design allows space usage to be maximised
- 3 sizes available; 315mm, 355mm and 400mm. Integrated mounting bracket included
- 50Hz Uni-Directional JTv Performance: 29-68N (Max Thrust 89N)
- 60Hz Uni-Directional JTv Performance: 34-66N (Max Thrust 85N)
- 2 Speed or inverter controlled motors
- Choice of high temperature electrical isolator or terminal box
- Can be supplied with eithers guards or deflector vanes
- Features space saving casing and integral mounting bracket for easy installation
- JTv product offers improved uni-directional thrust development
- JTv range also offers a “Max Thrust” version to further improve thrust development
Our Low Profile product is specifically designed for car parks that have low ceiling heights and where an axial fan solution is preferred. The product is comprised of a cased Axial fan, factory-fitted inside two octagonal, un-podded silencers, which are designed to completely enclose the fan unit. Silencers are each fitted with a bellmouth at both the unit inlet and outlet, to optimise thrust performance. Depending on specific customer needs, the uni-directional product can be fitted with guards (both ends) or can have an inlet guard and discharge deflector vane unit fitted.
The Woods JTv can be built to suit 3 different high-temperature specifications. The standard product (base variant) is designed to deliver a once-off emergency smoke extract duty (for a maximum duration of up to 2 hours) at 200°C, but two other options are also available to suit either 300°C or 400°C. Our 200°C rated units are fitted an electrical isolator as standard, whilst our 300°C and 400°C rated units have a terminal box fitted as standard. It is, however, possible to fit the 200°C rated unit with a terminal box or to fit a high-temperature electrical isolator to either the 300°C and 400°C rated units. The standard protection system for this product range is a galvanised finish, but we can also offer a variety of alternative paint finishes (based on any standard RAL colour), as may be required to meet a specific project specification.
