JTv Slim-Line Jet Thrust Fan

  • Slim Line: Modern, streamlined look, higher performance, used in zoned systems
  • 3 sizes available; 315mm, 355mm and 400mm. Integrated mounting bracket included
  • 50Hz Uni-Directional JTv Performance: 33-77N (Max Thrust 91N)
  • 60Hz Uni-Directional JTv Performance: 40-71N (Max Thrust 88N)
  • 2 Speed or inverter controlled motors
  • Choice of high temperature electrical isolator or terminal box
  • Can be supplied with eithers guards or deflector vanes

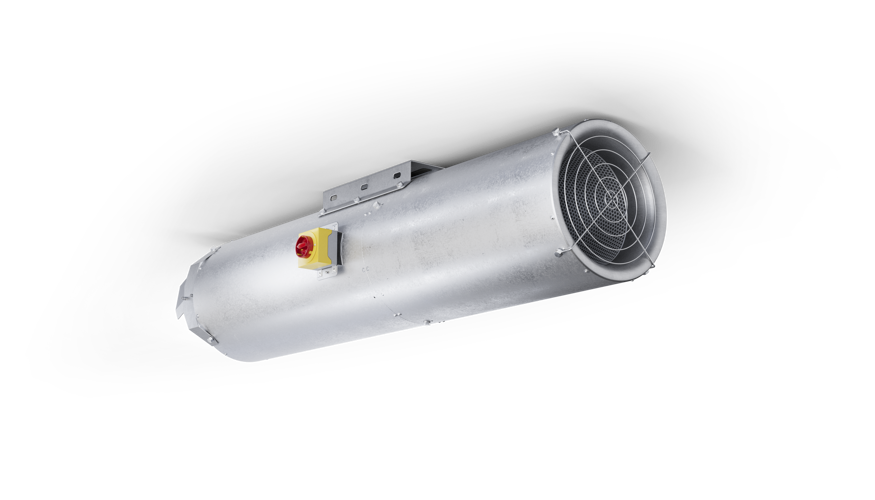

Jtv slimline parking garage jet fan

Best selling car park jet fan

Our JTv Slim-Line Car Park Jet Thrust Fan range includes uni-directional offering, which feature smooth aesthetically pleasing external lines and an integrated mounting bracket, making installation easy.
  • Aesthetically pleasing design includes integral mounting bracket for easy installation
  • JTv product offers improved uni-directional thrust development
  • JTv range also offers a 'Max Thrust' version to further improve thrust development

Our Slim-Line design features a more aesthetically pleasing outer casing, making it the go-to product for the majority of customer projects and enquiries. The product is comprised of a cased Axial fan, factory-fitted inside two cylindrical, un-podded silencers, which are designed to completely enclose the fan unit. Silencers each incorporate a bellmouth at both the unit inlet and outlet, in order to optimise thrust performance. Depending on specific customer needs, the uni-directional product can be fitted with guards (both ends) or alternatively can have an inlet guard and discharge deflector vane unit fitted.

Our JTv product variant can be built to suit 3 different high temperature specifications. The standard product (base variant) is designed to deliver a once-off emergency smoke extract duty (for a maximum duration of up to 2 hours) at 200°C, but two other options are also available to suit either 300°C or 400°C. Our 200°C rated units are fitted an electrical isolator as standard, whilst our 300°C and 400°C rated units have a terminal box fitted as standard. It is however possible to fit the 200°C rated unit with a terminal box or to fit a high temperature electrical isolator to either the 300°C and 400°C rated units. The standard protection system for this product range is a galvanised finish, but we can also offer a variety of alternative paint finishes (based on any standard RAL colour), as may be required in order to meet a specific project specification.

You may also be interested in the low profile version if over head space is limited. Get in touch with our experts to discuss the most suitable options.
