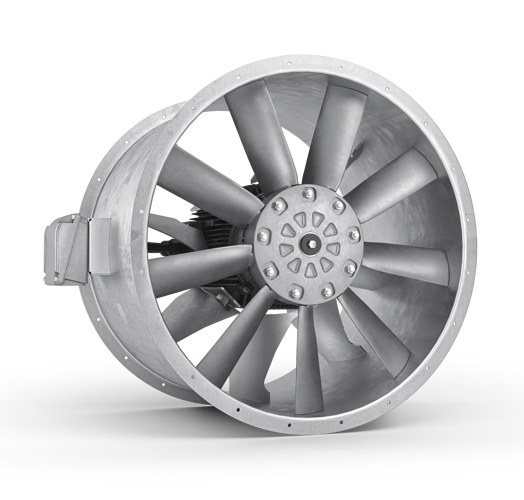

JMvG Aerofoil Axial Flow Fan

  • Volume flow rate up to 63.1 m³/s
  • Static pressure up to 1650 Pa
  • 1 and 3 phase options available (HT fans only available in 3 phase)
  • Suitable for both 50Hz and 60Hz electrical supplies
  • Fire rated for 200°C, 300°C and 400°C for a duration of 2 hours
  • Continuous operating temperatures up to +50°C as standard (+80°C on request)
  • Energy efficient, offers running cost reductions of up to 44.5%
  • Installation cost reduction of 50%
  • Reduces Impeller shaft power up to 46.1%
  • Delivers up to 40% more airflow and up to 33% more pressure than our JM Axial Fan range
  • Low sound levels - up to 8dB compared to our JM Axial Fan
  • Speed controllable during a Fire Event via our fully compliant HT fan and VSD solution

Axial Fans featuring the latest in Guide Vane Technology

Our original core JMv range has been extended and enhanced by the addition of the 1000, 1120,1250 and 1400mm sizes, which, as they feature new Guide vane technology, are known as 'JMvG' fans, but as they share a common heritage, they are still part of the JMv family.

The JMvG High Efficiency Axial fan range can deliver air flow rates up to 63.1 m³/s and static pressure up to 1650 Pa. Our JMv(G) fans can mounted into ductwork horizontally or vertically depending on the system configuration and we offer a wide range of accessories, such as mounting feet, anti-vibration mounts, matching flanges and flexible connectors. Fan casings are manufactured from galvanized steel, so have a high level of corrosion resistance, but we can also offer alternative finishes to deliver C3 corrosion resistance. Fan impellers are manufactured from Aluminum, or for specialist applications, from high grade carbon steel.

JMv(G) Axial flow fans are fully certified in accordance with EN12101-3:2015, which allows them to be driven by Frequency Converter (VSD) during a fire event, which provides fire system designers with a greater degree of functional performance.
