EC Induction Thrust Fan
- EC Induction fan with 12N, 25N, 44N & 50N
- Centrifugal impellers
- Energy efficient EC motors (12N Dual Motor)
- 12N & 25N: 1 phase 230V, 50/60 Hz usage
- 44N & 50N: 3 phase 380-480v, 50/60Hz
- Maximum operating temperature of 60°C (140°F)
- 100% speed controllable
- Low sound levels
- Light weight fan construction
The new EC parking garage induction thrust fan from Woods is specifically designed to be very compact, so is ideal for low height parking garages. Variants of dual and single high efficiency centrifugal impellers are each driven by an EC motor, making the product 100% speed controllable via a 0-10V signal. The product is designed specially to be used for a general ventilation application, pollution control (i.e., via carbon monoxide monitoring) and cold smoke extraction within closed parking garage buildings.
- Most compact fan suitable to fit low ceiling heights and height restricted parking garages
- Used for general ventilation purpose, carbon monoxide monitoring and cold smoke extraction in closed parking garage buildings
- For use in parking garage and loading bays
- Combined with dual centrifugal impellers and EC motors makes the fan 100% speed controllable via 0-10V signal.

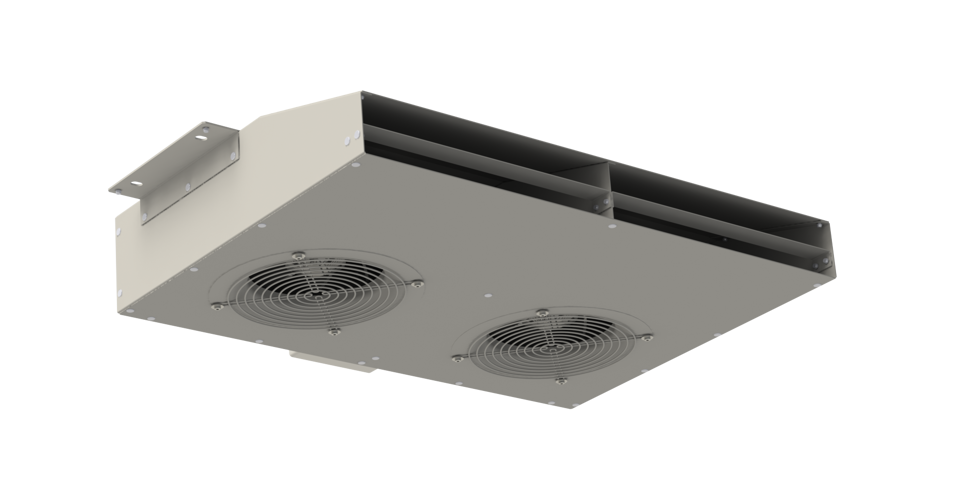

The EC Induction Thrust Fan (EC-ITF) features a single or two centrifugal impellers manufactured from plastic, each of which is driven by an energy efficient EC motor. As motors can be speed controlled via a simple zero-to-10-volt signal, this enables the product to deliver on demand ventilation, which perfectly matches the design requirement. The fan casing and integral ceiling mount brackets are manufactured from galvanized steel to provide product longevity and reliability. There is an externally mounted terminal box which is pre-wired to each drive motor, which offers a quick and hassle-free installation process. To provide enhanced safety, each fan inlet is fitted with a protection guard. Each impeller, which is manufactured from plastic, is balanced to grade G4.0 to minimize vibration.
