JM Axial Flow Fan

  • Available in 15 diameters, 315-1600 mm (12.4” – 63”) diameters
  • Volume up to 123,380 cfm
  • Static pressures up to 9.65 inwg
  • Fan efficiencies of up to 79%
  • Fans tested to ISO5801 and BS848
  • Suitable for Standard temperature ventilation (up to 104°F), plus a once off emergency smoke extraction duty at 572°F for 2 hours
  • Fan casings are hot dip galvanized to offer enhanced corrosion resistance
  • Fully cased design makes installation quick, simple and cost effective
  • Motors are single speed, 60Hz, Nema Premium efficiency machines, which are UL Listed and have IP55 ingress protection as standard
  • Low installed noise levels
  • UL Listed - Power Ventilators 705

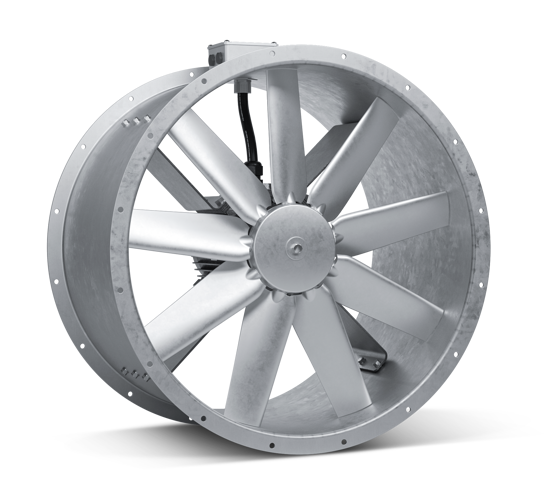

World class Axial Fans from Woods

Our JM Aerofoil (Tube) fans deliver high aerodynamic efficiencies (up to 79%) which is achieved using Aerofoil section impeller blades and aerodynamically optimized hub design, which deliver peak operating efficiencies.

• Fan casings (housings) are hot dip galvanized to offer enhanced corrosion resistance
• Fully cased design makes installation quick, simple and cost effective
• Robust reliable products by design
• NEMA Premium efficiency motors are UL Listed and have IP55 ingress protection as standard
• Low installed noise levels
• Reduced lead times to market, as this range is built in America

Our JM product is available as a fully cased axial flow fan which offers high efficiency performance. Each impeller is manufactured from high-pressure die cast aluminum, which is X-ray inspected using real time radiography (in accordance with ASTM E-155) to ensure product integrity and quality. Impellers are precision balanced to minimize vibration levels and assure smooth operation. Impeller blades are mounted into a hub and clamp plate assembly, which allows manual blade pitch angle adjustments to be made on site which offers performance flexibility.



Product Selection

Documents

  • JM Aerofoil Exhaust Fans
  • HT & Standard Axial Fans O&M
  • JM & HT JM Axial Fan Specification Sheet
  • JM & HT Axial Fans - Wiring Diagram
  • JM Axial Fan 315-500 1ph
  • JM Axial Fans 560-630 1ph
