EC Induction Thrust Fan


  • Induction fan with 12N thrust
  • Dual centrifugal impellers
  • Energy efficient dual EC motors
  • 1 phase with both 50/60 Hz usage
  • Maximum operating temperature of 60°C
  • 100% speed controllable
  • Low sound level of 64dB(A) at 3m
  • Light weight fan, 15kg only
  • Dual Impeller
  • Most compact fan suitable to fit low ceiling heights and height restricted car parks
  • Used for general ventilation purpose, carbon monoxide monitoring and cold smoke extraction in closed car park buildings
  • For use in car parks and loading bays
  • Combined with dual centrifugal impellers and EC motors makes the fan 100% speed controllable via 0-10V signal.

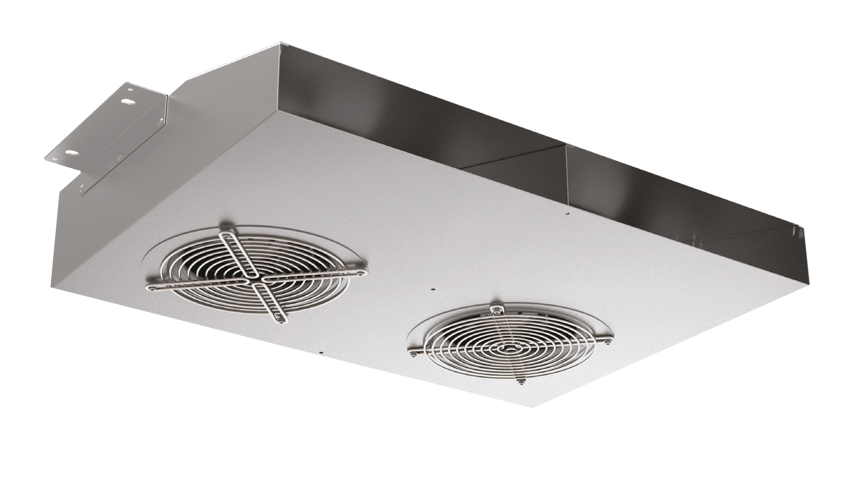

The Woods EC Induction Thrust Fan (EC-ITF) has energy efficient dual EC technology motors installed for the perfect ventilation. The fan casing is made up of galvanised steel and fitted with galvanised steel ceiling mounts, making it easier for you to mount. The EC-ITF has an external terminal box, which is internally connected to the motor side, and is also fitted with an inlet protection guard. The twin parallelly connected impellers are made from plastic and are perfectly balanced as per grade G4.0 to avoid any type of unnecessary vibration.

Product Selection

Documents

A list of relevant literature, operation and installation manuals for this product.
