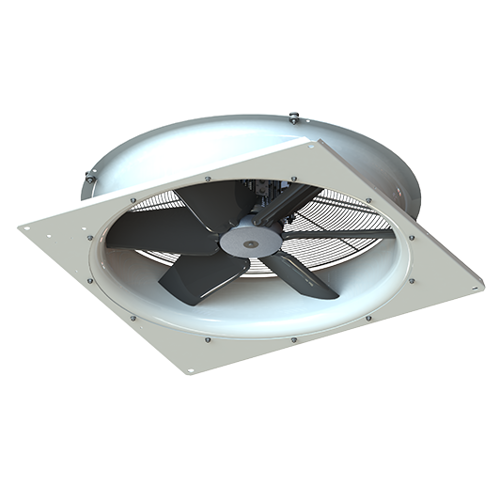

EC Climafan®

  • 710mm to 900mmØ, high efficiency (IE4+ and ErP compliant)
  • Volume flow up to 8.35 m³/s (30,060 m³/h)
  • Static pressures up to 237 Pa
  • Operating temp. range: -40°C to +80°C as standard
  • Independently tested IP65 rating
  • EC internal rotor motor with integrated variable speed drive (VSD)
  • 0-10V, 4-20mA or Modbus control input
  • Three configurable digital inputs, incl. reverse rotation functionality
  • +10VDC and +24VDC auxiliary supplies
  • Single piece molded 30% glass filled UV stabilized polymer impeller with crenulated blades, or polymer blade with alloy hub.
  • Galvanised fan casings powder coated in RAL9005 as standard
  • Fan performance is certified to ISO 5801

The Woods EC Climafan® range offers all the energy-saving benefits of the latest EC variable speed technology, whilst offering a class-leading -40°C to +80°C operating ambient temperature range and an IP65 ingress protection rating.


The Woods EC Climafan® range has been developed for the needs of the Original Equipment Manufacturing industry (OEM). Designed following extensive market research to meet every requirement for volume airflow whilst being quiet, light, efficient and competitively priced.

Rigorously tested against current international standards, the ClimaFan® range offers a -40°C to +80°C operating temperature range as standard – the widest operating temperature range in its class – as well as boasting an ingress protection rating of IP65.

We provide a bespoke design and system integration service tailored to meet the very specific needs of OEM’s.
